First-Claimed Greedy

This plugin implements the First-Claimed Greedy algorithm, a straightforward approach where each agent selects the nearest task based on local task information. The agent also considers messages from neighboring agents to avoid task conflicts.

In this algorithm, each agent follows these steps:

  1. Choose the nearest task: The agent selects the task closest to its current position.

  2. Consider neighboring agents: The agent checks the status of tasks claimed by neighboring agents.

  3. Handle conflicts: If the chosen task has already been claimed by another agent, the agent abandons the task and will attempt to select a new one in the next iteration.

The First-Claimed Greedy algorithm ensures that an agent’s initial claim on a task is upheld, and conflicts are resolved in subsequent steps. This approach minimizes task reassignment and optimizes task allocation based on proximity and real-time updates from neighboring agents.

An example of the parameters look like as follows:

decision_making:
  plugin: plugins.greedy.greedy.FirstClaimGreedy
  FirstClaimGreedy:
    mode: MinDist  # Options: Random; MinDist; MaxUtil
    weight_factor_cost: 10000.0 # Only used for `MaxUtil` mode

Parameters

mode:

Type

Default

String

MinDist
Description:

Determines the logic by which an agent selects a task from the available local tasks. The options are:

  • Random: Selects a task randomly.

  • MinDist: Chooses the task that is closest to the agent.

  • MaxUtil: Selects the task with the highest utility. The utility is currently calculated as:

    utility = task.amount - weight_factor_cost * (self.agent.position - task.position).length()
weight_factor_cost:

Type

Default

Float

10000.0
Description:

This parameter is used in the MaxUtil mode to influence the weighting factor for the cost component in the utility calculation. It determines the magnitude of the impact of distance on task utility.

Example config.yaml

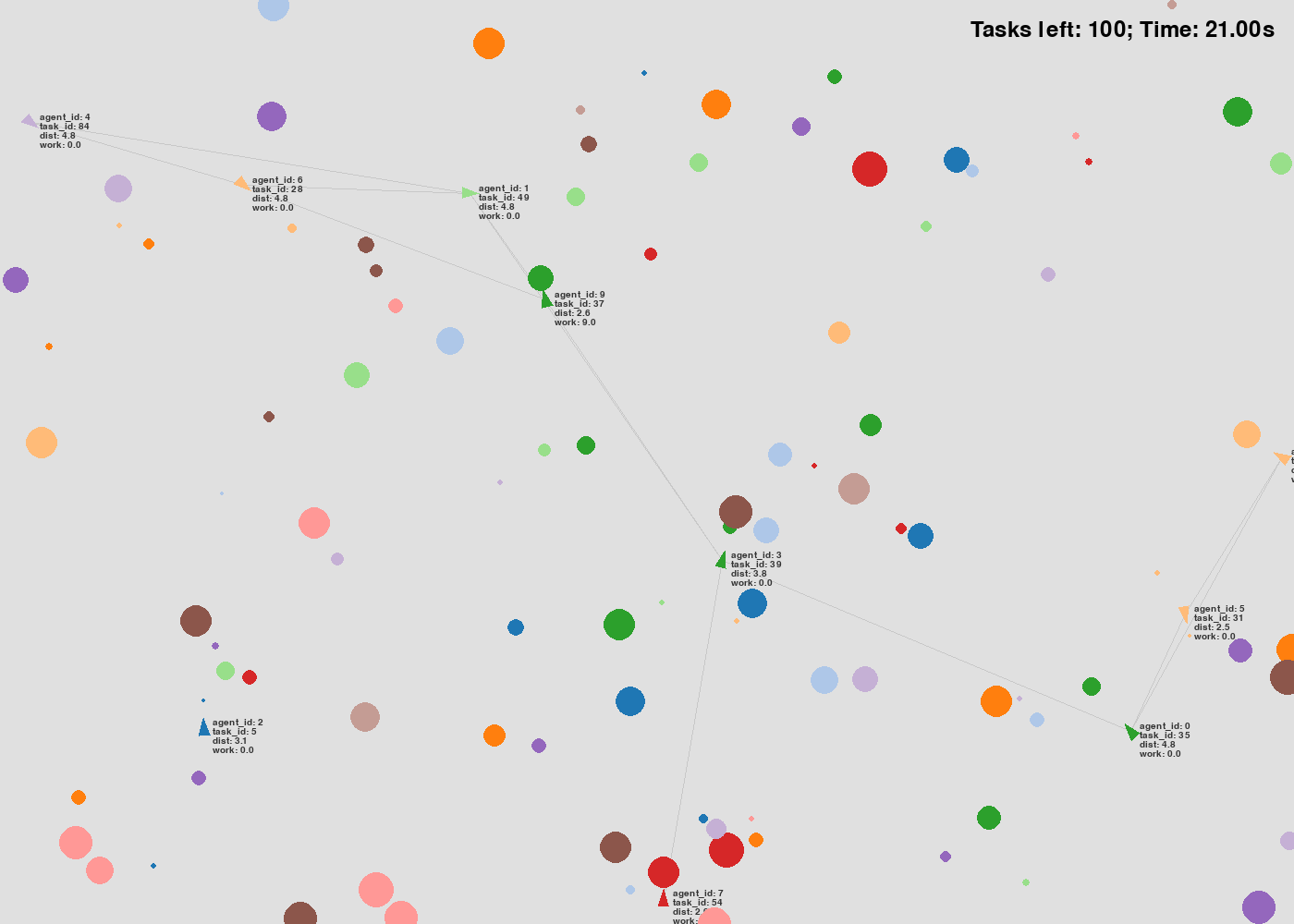

GIF of First-Claimed Greedy Sample Result

This was executed with the following configuration:

decision_making:
  plugin: plugins.greedy.greedy.FirstClaimGreedy
  FirstClaimGreedy:
    mode: MinDist
    weight_factor_cost: 10000.0 # Only used for `MaxUtil` mode

agents:
  behavior_tree_xml: default_bt.xml
  quantity: 10
  locations:
    x_min: 0
    x_max: 1400
    y_min: 0
    y_max: 1000
    non_overlap_radius: 0
  max_speed: 0.25
  max_accel: 0.05
  max_angular_speed: 0.25
  target_approaching_radius: 50
  work_rate: 1
  communication_radius: 500
  situation_awareness_radius: 500
  random_exploration_duration: 1000.0

tasks:
  quantity: 100
  locations:
    x_min: 0
    x_max: 1400
    y_min: 0
    y_max: 1000
    non_overlap_radius: 0
  threshold_done_by_arrival: 10.0
  amounts:
    min: 6.0
    max: 60.0
  dynamic_task_generation:
    enabled: True
    interval_seconds: 2000
    max_generations: 3
    tasks_per_generation: 25

simulation:
  sampling_freq: 1.0
  speed_up_factor: 0
  max_simulation_time: 0
  agent_track_size: 400
  screen_width: 1400
  screen_height: 1000
  gif_recording_fps: 0.05
  task_visualisation_factor: 3
  profiling_mode: False
  rendering_mode: Screen
  rendering_options:
    agent_tail: True
    agent_communication_topology: True
    agent_situation_awareness_circle: False
    agent_id: True
    agent_work_done: True
    agent_assigned_task_id: True
    agent_path_to_assigned_tasks: True
    task_id: False
  saving_options:
    output_folder: output
    with_date_subfolder: True
    save_gif: False
    save_timewise_result_csv: True
    save_agentwise_result_csv: True
    save_config_yaml: True
